Colors & Construction


Construction standards in your area:

 The models we offer have framing spaced no more than 5' apart, and braces on every leg, standard.  When installed on concrete, or if you add mobile home anchors for ground installation, these models are Certified and rated to withstand at least 105 mph winds and 20 psf (some models require 12 Ga. framing upgrade)  They come standard with a 30-day workmanship warranty.  If you upgrade to the thicker, 12 Ga. framing, you will also have a 20-year warranty against rust-through on the framing.


Important note:  Horizontal Roofing will have a 6" overhang on the front and rear of the structure (the frame is one foot shorter than the roof).  Vertical Roof models will NOT have an overhang on the front or rear- the roof and frame will be the same length.


Concrete Footings or Mobile Home Anchors are ALWAYS required for Certified Installed Structures!

16 Colors to choose from!



There are 16 different colors to choose from, for the ROOF, WALLS, and TRIM.


Engineered plans available!

We will ask you to fill out a Certification Checklist, with information from your local permit office, to verify the requirements for your area.


Types of plans available:


- Genric emailed version - FREE

- Wet Seal plans - $150

- Site Specific plans - (varies by size)


Important Note For AZ Customers!

AZ is very strict- Customers are required to have either Proof of Permit, or Proof that Permit is NOT required, before we can schedule your delivery, unless you will be installing the structure yourself (5% discount).


All models for AZ MUST be Certified (some models will require 12 Ga. framing) for at least 20 psf/105 mph.   Please check wit your local permit office BEFORE obtaining pricing quotes!

Carport Covers

Regular Style


 Regular Style Covers have HORIZONTAL panels on the roof, and offer additional clearance near the corners.  (The ridges of the steel will run from the front to the rear, and water will drain towards the front or rear of this roof.)

Boxed Eaves




Boxed Eave Style Covers have HORIZONTAL panels on the roof, and feature a 6" overhang all the way around the structure.  (The ridges of the steel will run from the front to the rear, and water will drain towards the front or rear of this roof.)

Vertical Roof




Vertical Roof Style Covers have VERTICAL panels on the roof.  (These models do NOT have an overhang on the front or rear- the roof and frame are the same length.)  Hat channels support the roof panels, and there is a Ridge Cap at the top of the peak.  (Water and snow will drain to the sides of this roof.)

Piece by Piece: Regular/Horizontal


Piece by Piece: Boxed Eave/Vertical


Measurements:


  Sizes are listed (WIDTH)x(LENGTH)x(HEIGHT)

Garages

Regular Style Garage




Regular Style Garages are the most popular choice for customers who are wanting an inexpensive way to obtain reliable storage space.  Because of the additional clearance offered near the corners, we do not have to design them as tall as the other models.

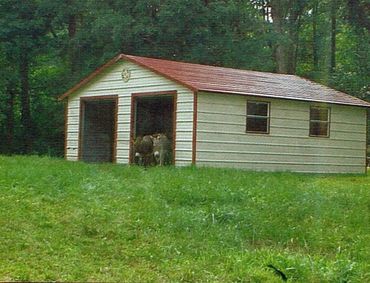

Boxed Eave Garage




Customers wanting to match the look of their house will choose the Boxed Eave Style Garage.  This style is great for models 31' long or less.  There is a 6" overhang all the way around the building.

Vertical Roof Garage




The Vertical Roof Style Garage is recommended for models longer than 31', and for areas with heavy snow-loads.  One benefit of the Vertical Roof is the ridge-cap, which allows ventilation through the peak of the roof.

(Vertical Roofing will NOT have an overhang on the peak-ends of the structure.)

Storage




These structures are great for storage!  Options include: Roll-up Doors, Walk-In Doors, Windows, and more!

Storage/Garage


 Whether you want a 12' - 24' wide Single/Double Garage, or a 26' - 30' wide Triple-wide Garage, WE HAVE THE RIGHT SIZE FOR YOU!

Multi-Vehicle Garage




Lengths will increase by 5' increments- AS LONG AS YOU NEED!  We can design 4-Car, 5-Car, even 10-Car Garages!

Combo-Buildings

Regular Style Combo-Building


 Another economical design is the Regular Style Combo-Building with rounded corners.  This model offers more clearance near the corners than the other two styles.

Boxed Eave Combo-Building




If you would like to place a roll-up door on the eave-side of your structure, you will want to choose one of the Boxed Eave Combo-Buildings.  This model is great for models 31' and less.

Vertical Roof Combo Building




The Vertical Roof Combo-Building is the  best style for models LONGER than 31', or if you just want the best roof that we offer!  The ridge-Cap offers additional ventilation inside the enclosed section.

Custom Designs Available


 If you can tell us what you are looking for, we can help you design it!

So Many Options!




Your Garage and Cover can be customized with options such as Gable Ends,  Decorative entrances, Extra Panels, Roll-up Doors, Walk-in Doors, Windows, and More!

We have the perfect size for YOU!




With so many Widths, Lengths, and Heights to choose from, we can find a structure to fit your needs!

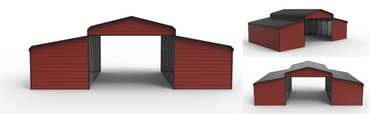

Horse Barns

Regular Style Horse Barns




Regular Style Horse Barns have more of a "Barn" look.  This is the most cost-effective model, and offers the most clearance near the corners, when compared to the other two styles.

Boxed Eave Horse Barns




The Boxed Eave Style Horse Barn is the most popular style, and is best for models 31' and shorter.  We can fully enclose the entire structure, or section by section, to create one big Garage, or several smaller ones.

Vertical Roof Horse Barns




Vertical Roof Style Horse Barns are great for any size Barn, but are strongly recommended for models longer than 31'.

Seneca Combo's




Seneca models have a Continuous Roof-line.  There is a 3' difference in leg-height from the Center section to the Lean-To's.

Seneca Covers




Seneca Models can be Custom Designed as Covers, Garages, or Combo Buildings!

Seneca Garages




With so many design options available, we are sure that we can help you find exactly what you are looking for!
